Harley Davidson SuperLow 1200T Features and Specifications

Published On Mar 12, 2014 12:00 AM By Naveen Sonifor Harley Davidson DYNA

  • 1524 Views
  • Write a comment

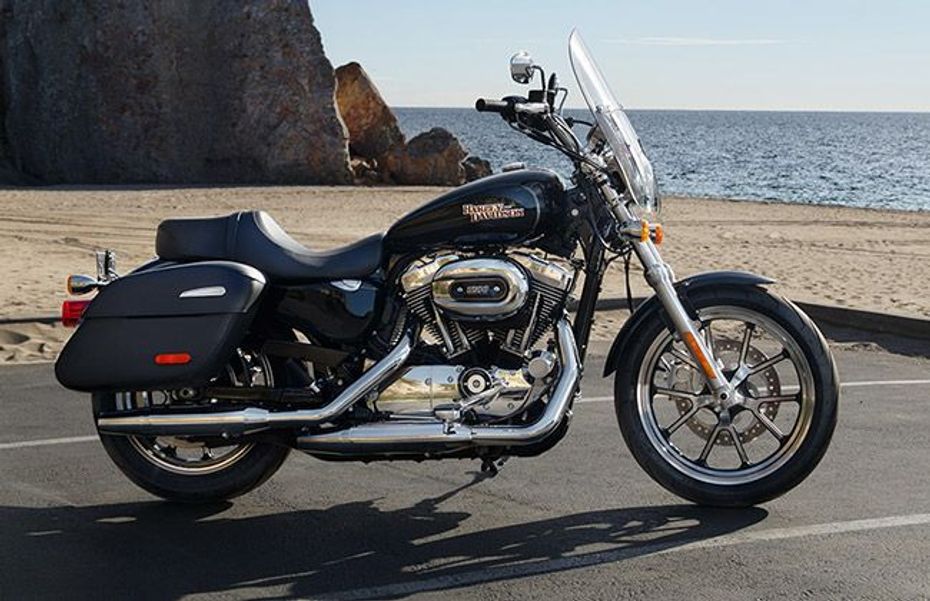

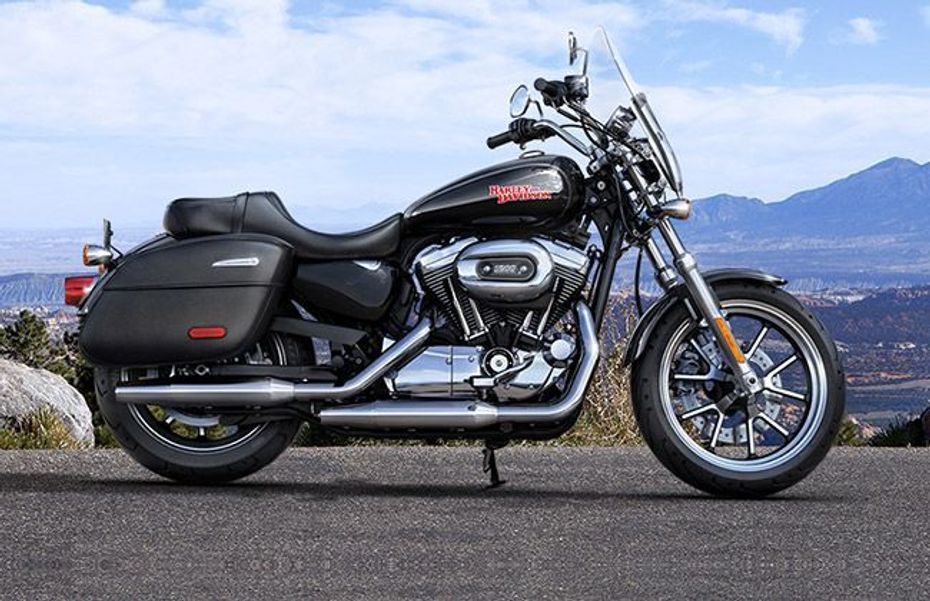

Harley Davidson recently launched a new tour ready model of its SuperLow 1200 christened as SuperLow 1200T. The bike has got some extra comfort and convenience features to make it tour compatible. The bike has received major changes in its seat and handlebar along with a large wind shield provided at the front.

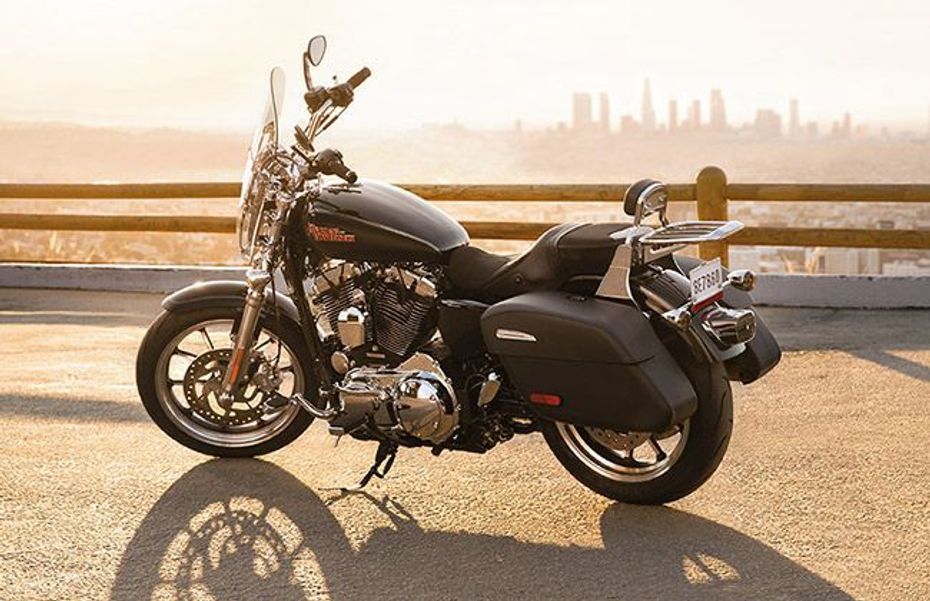

Harley Davidson SuperLow 1200T



Powered by a 1200cc, air-cooled, Evolution, V-Twin with Electronic Sequential Port Fuel Injection (ESPFI), the bike delivers a peak torque of 367Nm at 3500 rpm. it gets a broad powerband for easy get-away from a stop and smooth power out of corners. The powertrain is finished in black powder coat with chrome-plated covers.

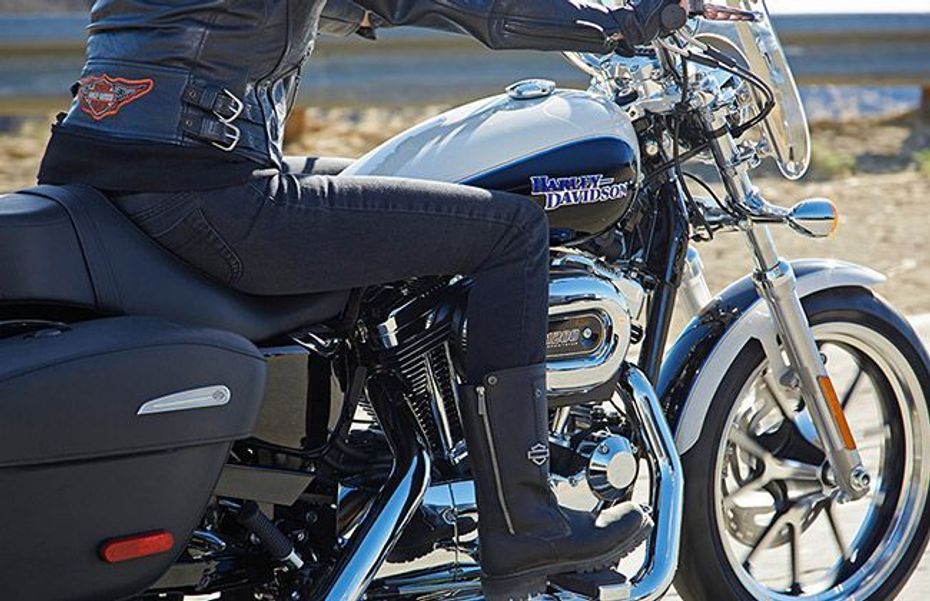

Harley Davidson SuperLow 1200T



H-D SuperLow 1200T features a Reduced Reach two-up touring seat moves the rider forward and features a narrow nose for an easy reach to the ground.

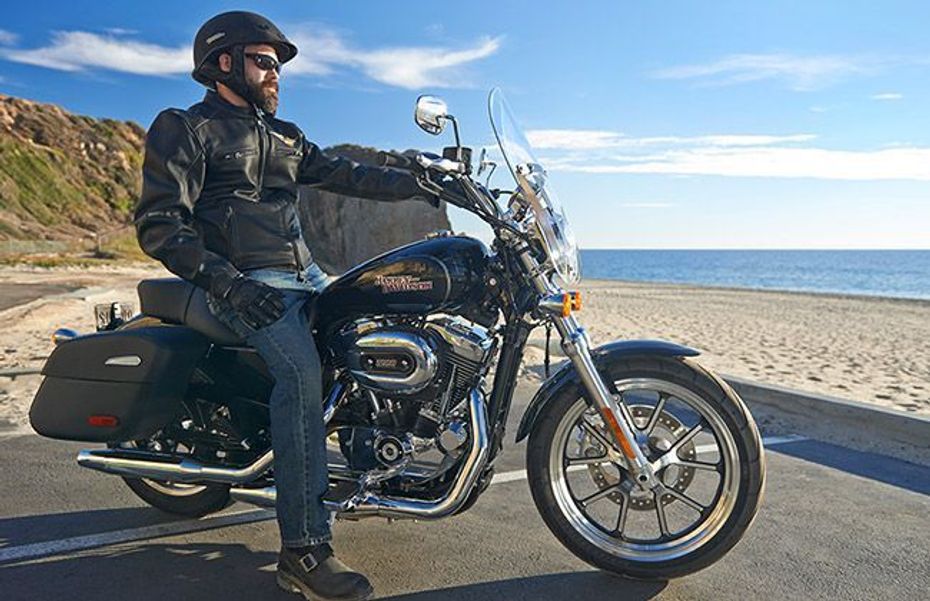

Harley Davidson SuperLow 1200T



Rear suspension features a right-side twin tube and a left-side dial adjustable emulsion shock with an easy-to-reach dial that enables a broad range of pre-load adjustment without removing the saddlebags or using tools. Front suspension is tuned to accommodate touring and passenger payloads while providing a comfortable ride.

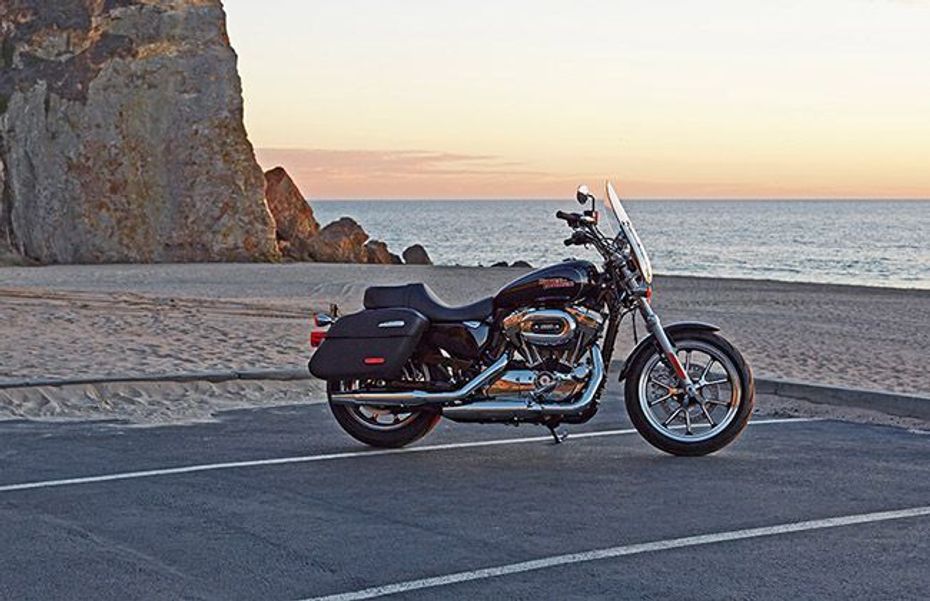

Harley Davidson SuperLow 1200T

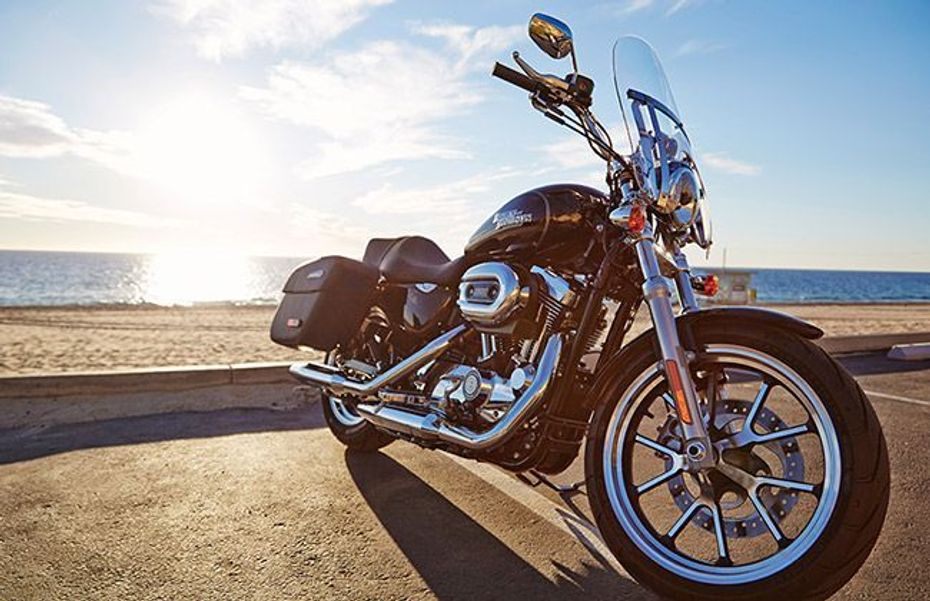

SuperLow 1200T has been gifted with a detachable 14-inch clear polycarbonate windshield can be adjusted on the forks to match rider height. Optimized rider foot location allows easy reach to the ground and to the side stand, while mini footboards provide support to the rider for comfort on long rides. Black and silver, split five-spoke aluminum wheels have been covered with Michelin Scorcher 11T touring tires that are engineered for a touring payload.

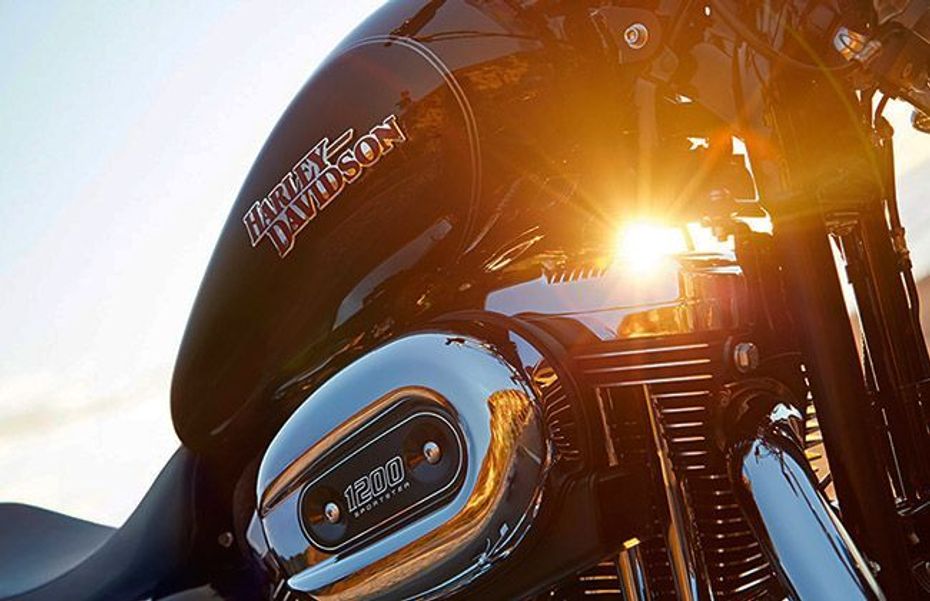

Harley Davidson SuperLow 1200T

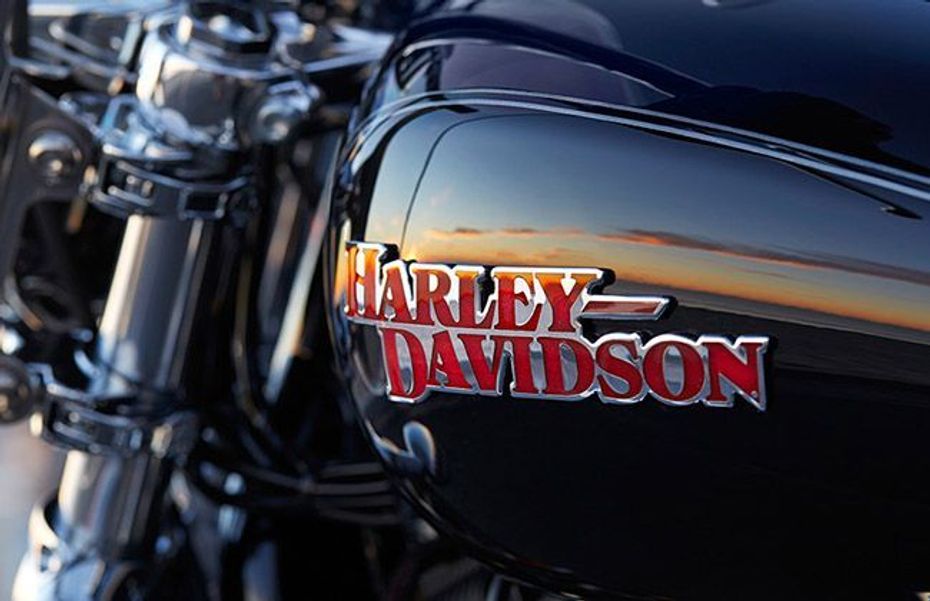

Front turn signals are located on the lower triple tree to increase handlebar adjustment range. Lockable saddlebags are covered in durable black vinyl with chrome badges. Factory-installed rear docking hardware facilitates installation of an optional luggage rack and sissy bar with backrest. Premium glass-filled chrome cloisonné tank badge, Chrome-plated headlamp visor, turn signal housings and instrument gives a classy look to the bike.

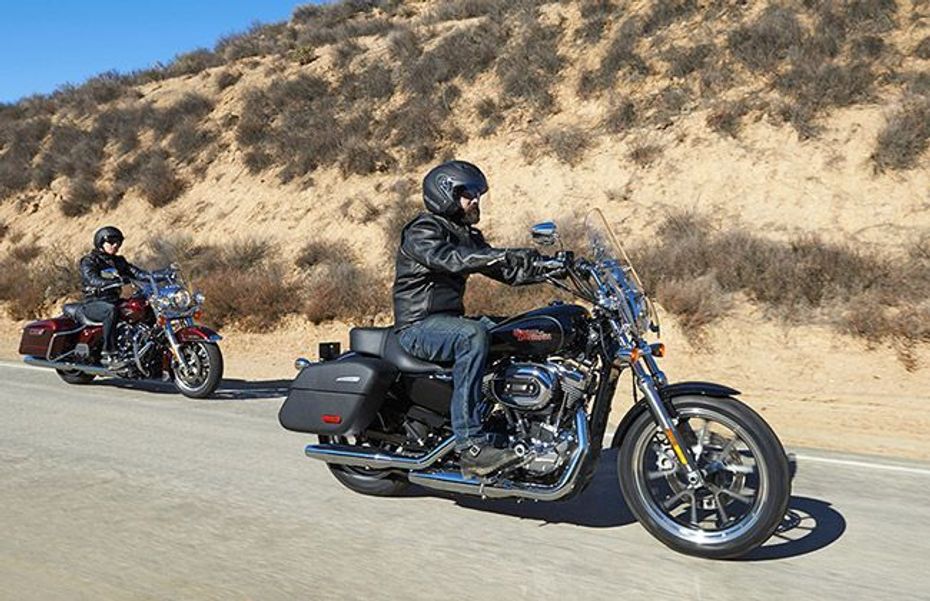

Harley Davidson SuperLow 1200T



Harley SuperLow 1200T has been made available in 3 attractive colour options- Vivid Black, Candy Orange, and two-tone Birch White/Midnight Pearl. The base Vivid Black has been priced at $11,799 in USA, while the other single colour option costs $12,114. Teh dual tone model comes with a price tag of $12,334 and all the prices will inrease by $395 for ABS (optional).

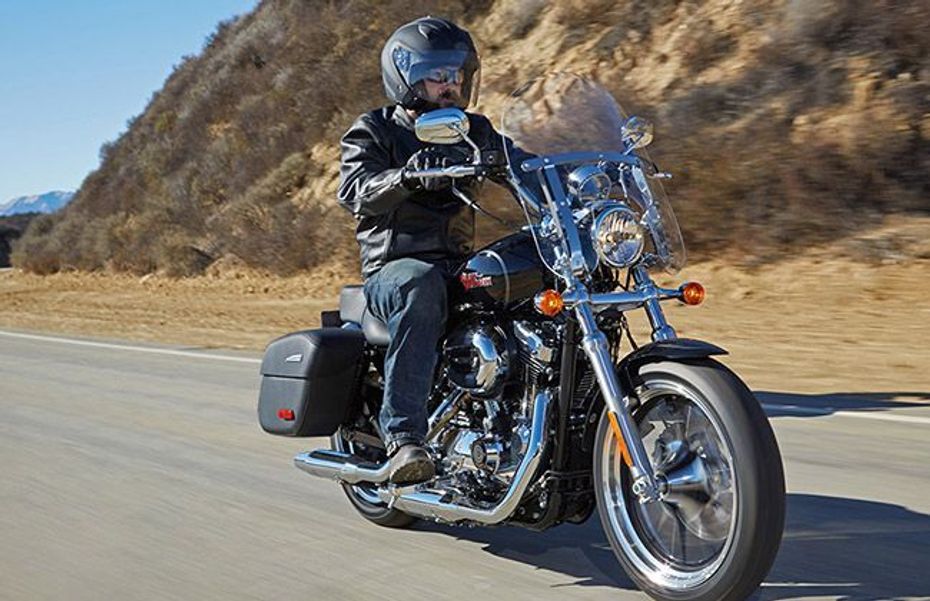

Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Technical specifications:



Harley Davidson SupeLow 1200T Engine:

Engine: Air-cooled, Evolution V-twin

Bore x Stroke: 88.9mm x 96.8mm

Displacement: 1202.8cc

Compression Ratio: 10:01

Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

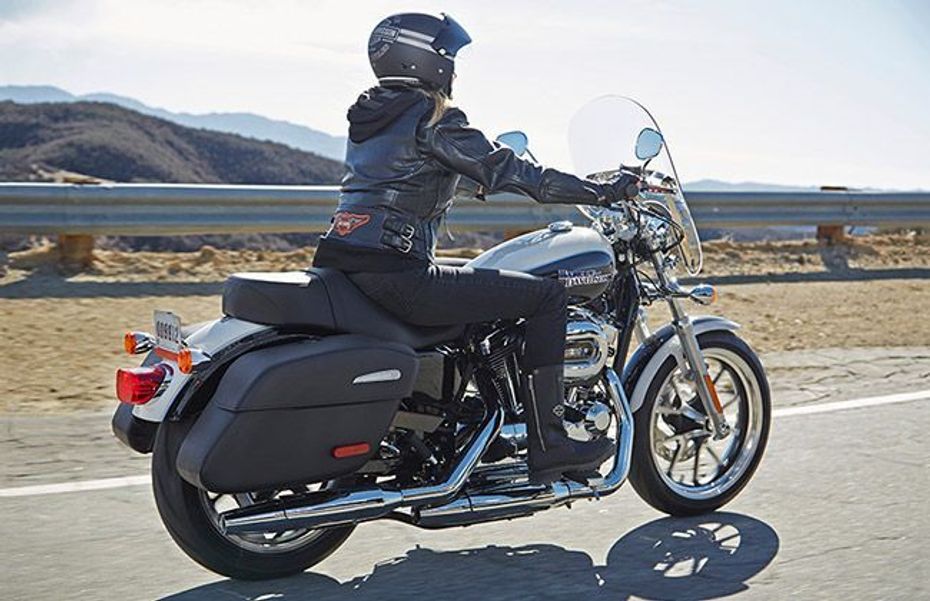

Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Drivetrain:

Primary Drive: Chain, 38/57 ratio

Gear Ratios (overall) 1st: 9.315

Gear Ratios (overall) 2nd: 6.653

Gear Ratios (overall) 3rd: 4.948

Gear Ratios (overall) 4th: 4.102

Gear Ratios (overall) 5th: 3.517



Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Performance:

Torque: 367Nm @3,500rpm

Fuel Economy Combined City/Hwy: 20.4kmpl



Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Dimensions:


Length: 2224mm

Seat Height, Laden: 663.7mm

Seat Height, Unladen: 702.3mm

Ground Clearance: 106.68mm

Rake (steering head) (deg): 31.1

Trail: 144.78mm

Wheelbase: 1501.14mm

Fuel Capacity: 17 litre

Oil Capacity: 2.65 litre

Weight, As Shipped: 259.37kg

Weight, In Running Order: 271.62kg



Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Tires and Wheels:

Front Wheel: Black/Silver, Split 5-Spoke Cast Aluminum

Rear Wheel: Black/Silver, Split 5-Spoke Cast Aluminum

Front Tyre: 120/70 ZR-18 59W

Rear Tyre: 150/70 ZR-17 69W



Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Brakes:

Front: Disc with dual piston caliper

Rear: Disc with dual piston caliper



Harley Davidson SuperLow 1200T



Harley Davidson SupeLow 1200T Electric:

Lights (as per country regulation), Indicator Lamps 8High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
