Yamaha XSR125 vs Yamaha XSR155: Differences Explained

Modified On May 19, 2021 03:15 PM By Praveen M. for Yamaha XSR 155

  • 377729 Views
  • Write a comment

How different is Yamaha’s newest baby retro from its elder sibling? We delve deeper to find out

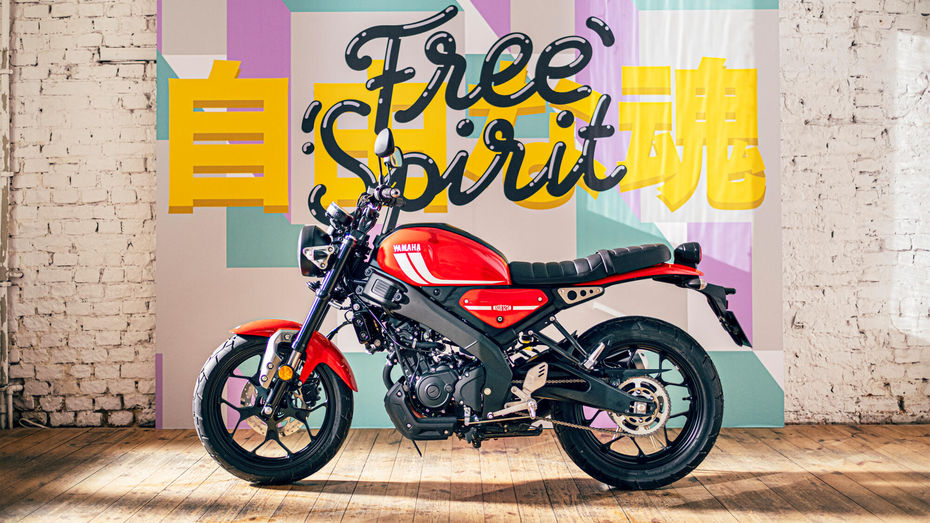

Yamaha recently introduced in Europe its smallest motorcycle under the XSR family, the Yamaha XSR125. Since it is based on the popular Yamaha XSR155, we couldn’t help but wonder how different the two motorcycles are. Here’s our analysis:

What’s different?

The most obvious difference lies in the powertrain. As their names suggest, the Yamaha XSR125 and the XSR155 cater to the 125cc and 150+cc segments, respectively. Take a look at the table below:



Specifications

Yamaha XSR125

Yamaha XSR155

Engine

124cc, single-cylinder, liquid-cooled engine with VVA

155cc, single-cylinder, liquid-cooled engine with VVA

Peak power

14.9PS at 10,000rpm

19.3PS at 10,000rpm

Maximum torque

11.5Nm at 8000rpm

14.7Nm at 8500rpm

Transmission

6-speed

6-speed with assist and slipper clutch

Kerb weight

140kg

134kg

Power-to-weight ratio

106.8PS per tonne

144.08PS per tonne

Disc brake sizes front / rear

267mm / 220mm

282mm / 220mm

It is worth mentioning that European safety and emission regulations are stricter. Hence, the Yamaha XSR125 comes with a dual-channel ABS as standard along with a Euro5-compliant engine. The ABS module, along with the extra emission-restricting components, could be why the smaller-engined XSR is 6kg heavier than its bigger sibling. So the extra heft and the relatively low output have significantly impacted the bike’s power-to-weight ratio.

Additionally, the XSR155 gets the advantage of an assist-and-slipper clutch, ensuring easier lever operation and preventing the rear wheel from locking up while downshifting hard. And thanks to the extra performance, the Yamaha XSR155 benefits from a bigger front disc, ensuring better stopping power. That said, there’s no ABS, not even as an option.



Dimensions

Yamaha XSR125

Yamaha XSR155

Ground clearance

160mm

170mm

Seat height

815mm

810mm

Fuel tank capacity

11 litres

10.4 litres

The slight difference in the fuel tank capacity may have also contributed to the extra heft. Interestingly, despite having more ground clearance, the XSR155 gets a 5mm lower seat. This should be helpful for shorter riders, and the added ground clearance should also help to explore the trails.

Another major difference between the two bikes is the colour scheme. That said, both are eye-catching, irrespective of the body paint. Both bikes have block pattern tyres from the same brand, but they’re slightly different models. While the Thai-spec Yamaha XSR155 rolls on IRC Trail Winner GP-211, the Euro-spec Yamaha XSR125 is shod with IRC Trail Winner GP-210.

What’s not-so-different?

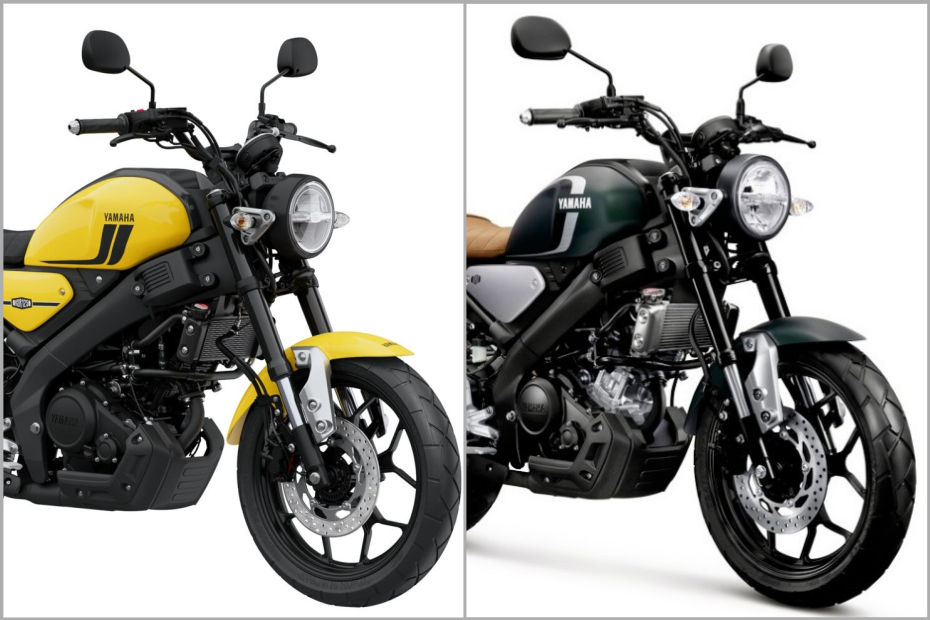

The Yamaha XSR125’s design is pretty much the same. If it weren’t for the different colour scheme(s), it would’ve been easy to mistake the smaller bike for the XSR155. The front inverted fork, rear monoshock, 17-inch alloy wheel design, and even tyre sizes (110-section front and 140-section rear) are the same. Also, the 1,330mm wheelbase is the same on both bikes.

The two motorcycles are built on the same deltabox frame, linked to an aluminium swingarm. They are equipped with an all-LED headlamp, LED tail lamp, bulb indicators, and a full-LCD multifunction instrument cluster.

All in all, Yamaha should manufacture the XSR125 fairly easily, considering several parts, including the chassis and some features, are shared with the XSR155. However, instead of bringing either one of these to India, Yamaha plans to launch the FZ-X, which is based on the proven Yamaha FZ-Fi platform. Check out all the details here.
